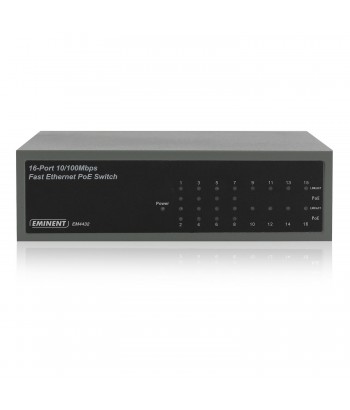

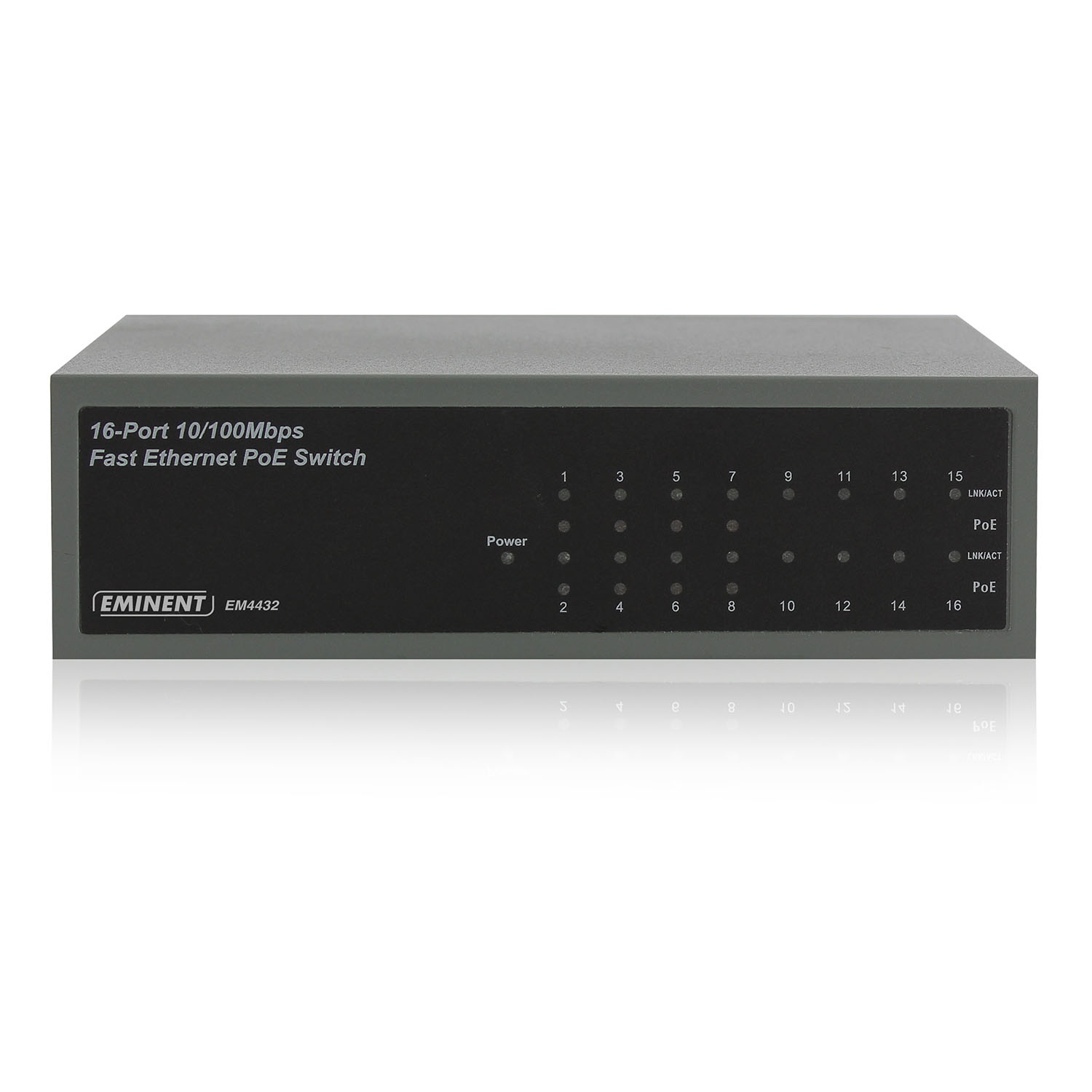

16-Port 10/100Mbps Switch, 8 PoE ports

Expand your available network connections with a PoE Switch

16 port 10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports (port1-port16) with 8 port PoE function (port 1 - port 8)
Complaint with 802.3af specification
Supports PoE power up to 15.4W for each PoE port
Supports total PoE power up to 60W for all PoE ports
Supports PoE IEEE802.3af compliant Powered Device (PD)
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
8K entry MAC address table of the switch with auto-learning and auto-aging

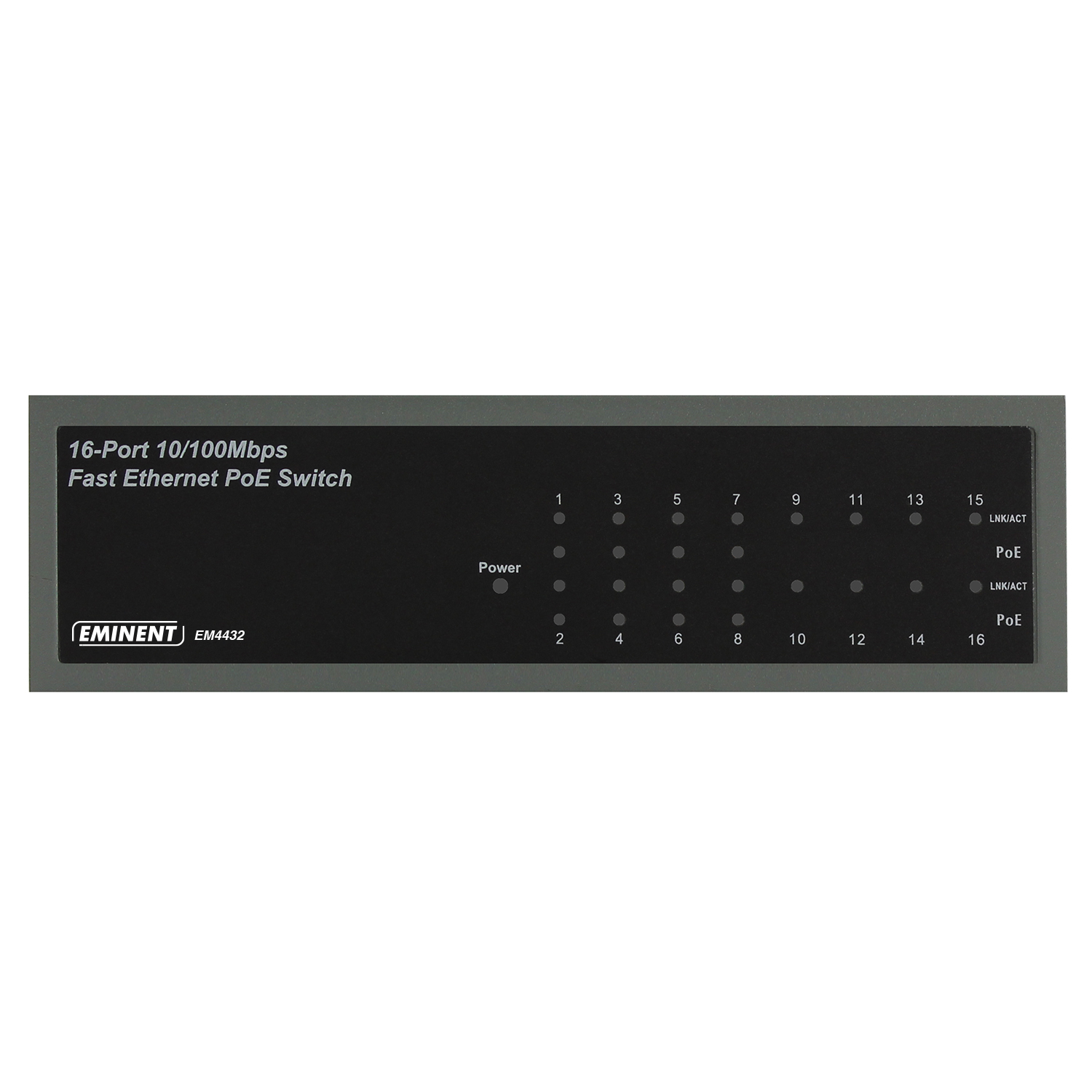

LED indicators for monitoring power, link, activity, POE
External power supply

EM4432

| Add to Compare

Product Description

Details

Expand your available network connections with the Eminent PoE (Power over Ethernet) Switches. PoE Switches provide power for your network devices, which are connected to your PoE switch. Connect access points, IP cameras and VoIP phones, which are PoE enabled, with an UTP cable (Cat 5, 5e or 6) to the PoE switch. No additional power supplies are required for the connected devices. This is an ideal solution for SOHO (Small Office, Home Office) and business use.

Additional Information

Type	Switch
Number ports	16

Operating System

This product does not depend on your operating system

Product Specification

EAN: 8716065315158

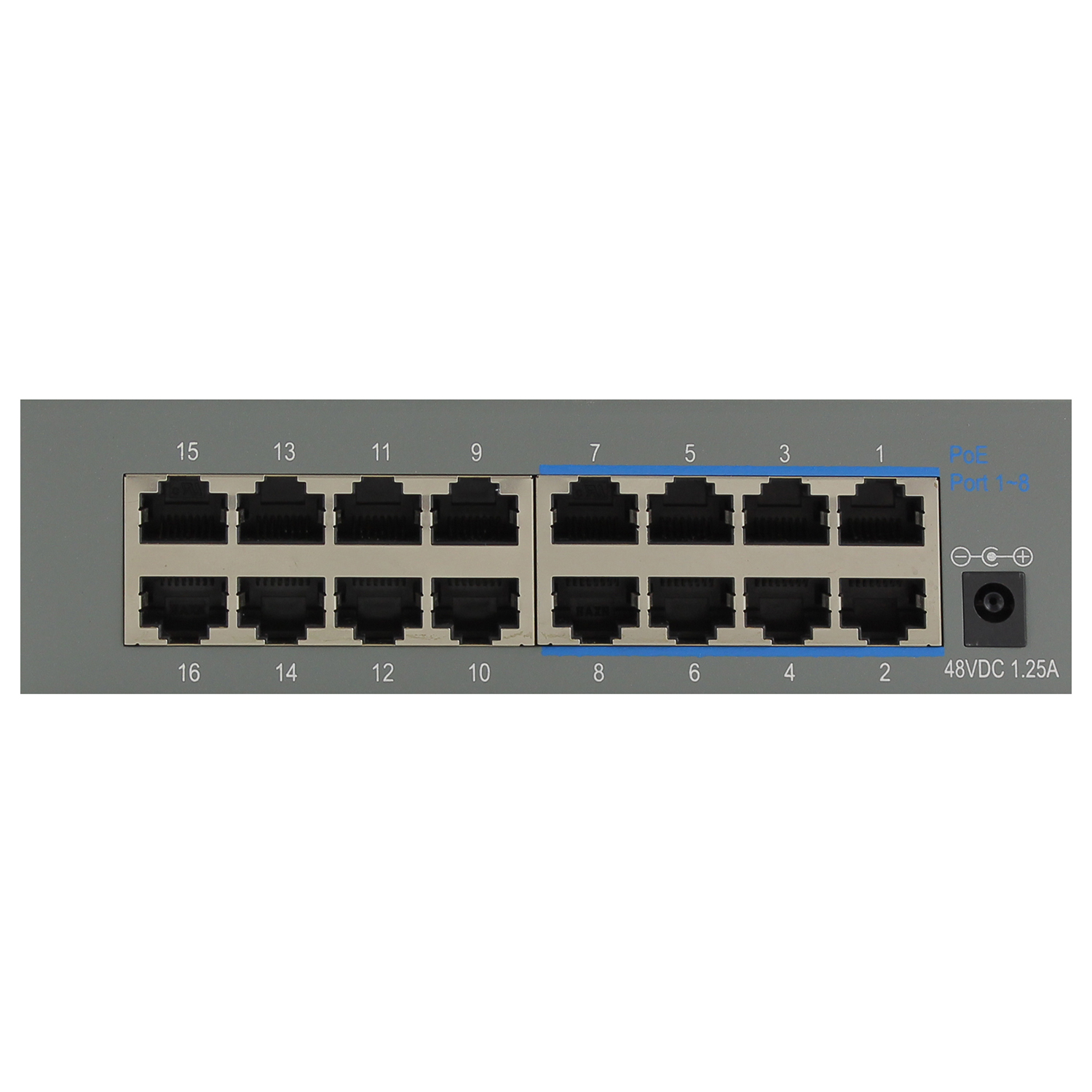

5 YEAR WARRANTY Dimensions in mm. (WxHxD): 118x46x156 Weight in grams: 515 Standards : IIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af Number of ports : 16 x 10/100Mbps Auto-Negotiation ports Switching capacity : 1G Transfer method : Store-and-Forward PoE Power : Power+: pin 4 & pin 5, Power-: pin 7 & pin 8, PoE mode B Max PoE power : 15.4W for each PoE port, 60W for all PoE ports MAC address learning : Automatically learning, automatically Update
